Implementing BIM Modeling for Efficient Project Coordination

Implementing BIM Modeling for Efficient Project Coordination

A recent survey revealed that 72% of those who adopt BIM claim that it reduces risks in professional projects. If you plan your construction project with BIM, it’ll have fewer problems. So you’ll have fewer disputes, cost overruns, or time delays.

BIM modeling services help create digital representations of a facility’s physical and functional characteristics. As such, it facilitates design, construction, operations, and maintenance. Here’s how BIM modeling can lead to efficient project coordination:

What is a BIM Model?

BIM is a digital representation of a building’s physical and functional characteristics. It involves creating and managing information throughout the lifecycle of a project.

Unlike traditional 2D blueprints, BIM modeling provides a multidimensional view. This offers a comprehensive understanding of the project’s intricate details.

A BIM model consists of various interconnected elements. These include:

  • 3D geometries
  • Spatial relationships
  • Geographic information
  • Quantities
  • Attributes of the building components

Each element represents a specific aspect of the project. This all-inclusive data-rich model serves as a shared knowledge resource that facilitates decision-making. It also helps reduce errors and improve collaboration among project stakeholders.

Visuals that Make Up a BIM Model

BIM visualisation revolutionises the way construction projects are planned, executed, and managed. It allows project stakeholders to collaborate effectively and make informed decisions. Here are some of the types of visuals that constitute BIM:

3D BIM Modeling

These models capture the characteristics of your project in digital format. They integrate architectural, structural, and MEP systems into a single model. This helps foster a clear understanding and visualisation of the project’s components.

Floor Plans and Elevations

BIM visualisation generates detailed floor plans and elevations. This provides a comprehensive view of the project’s layout and design.

As a result, the visuals offer an in-depth understanding of spatial relationships. This will help project managers in planning and coordinating various construction phases.

Clash Detection and Coordination

One of the remarkable aspects of BIM visualisation is its clash detection capability. This involves identifying conflicts between different building systems. For instance, when pipes intersect with electrical conduits.

BIM models allow project teams to resolve these clashes before they occur on the site. This ensures smoother execution and reduces rework.

Construction Sequencing

BIM models can simulate construction sequences. It helps project managers to visualise the order of different component construction. This helps in optimising the construction process, resource allocation, and reducing project delays.

Phasing and Time-Based Visualisation

BIM visualisation can also depict the different project phases over time. It’s useful for renovation projects where existing structures need integration with new components. The project team can use this feature to ensure each phase aligns with the project timeline.

Material and Texture Rendering

BIM models can incorporate material and texture information. It provides a realistic representation of the final building.

This visual fidelity helps stakeholders to understand the aesthetics of the project. As a result, they can make informed decisions about materials and finishes.

The BIM revolution is now

Turning Scans into BIM Models With Matterport

Matterport is a pioneer in laser scanning technology. It has a revolutionary feature that streamlines the journey. From real-world spaces to accurate BIM models. Below is a step-by-step process of transforming laser-scanned data into detailed BIM models.

Step 1: Laser Scanning and Data Capture

The Matterport laser scanning technology captures intricate details of physical spaces. Using its cutting-edge camera systems, Matterport scans interiors, exteriors, and more.

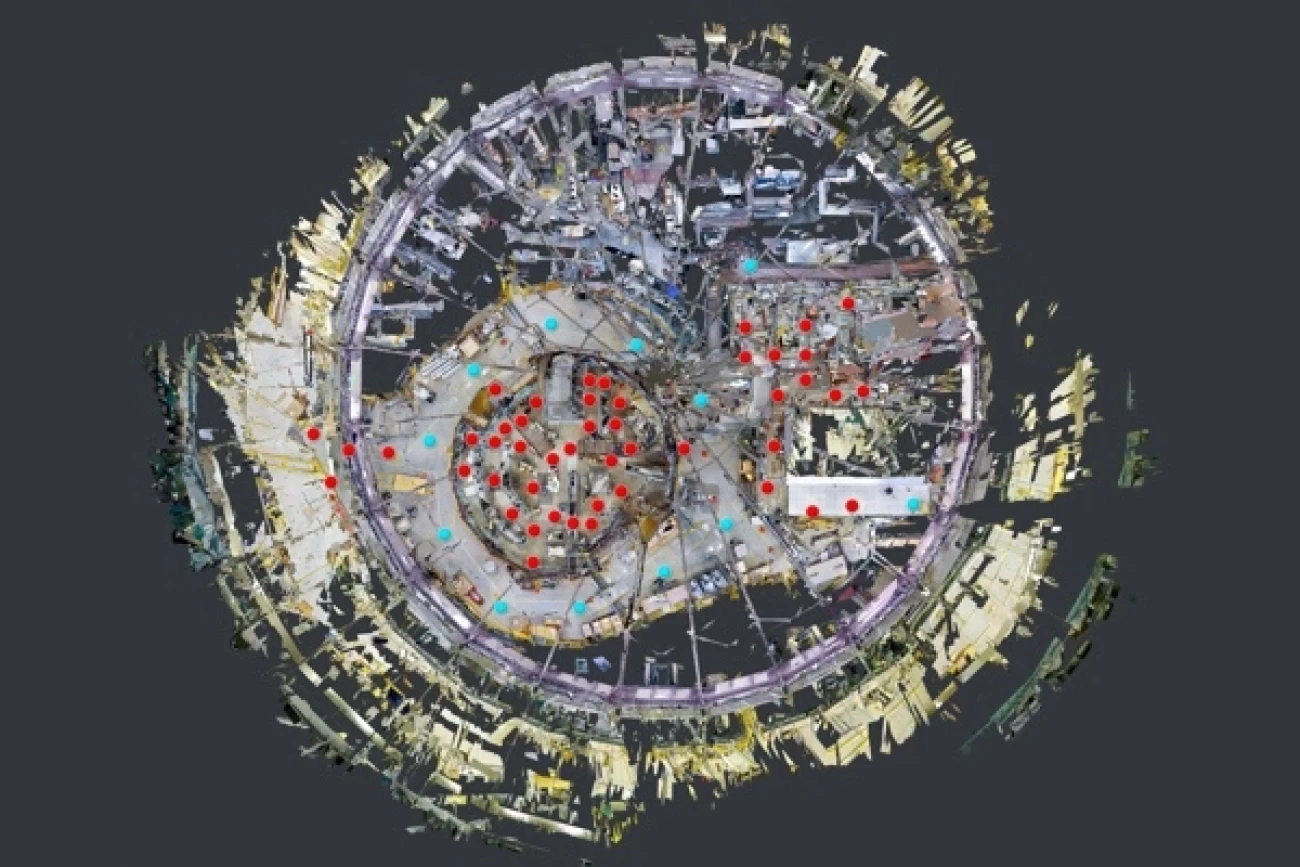

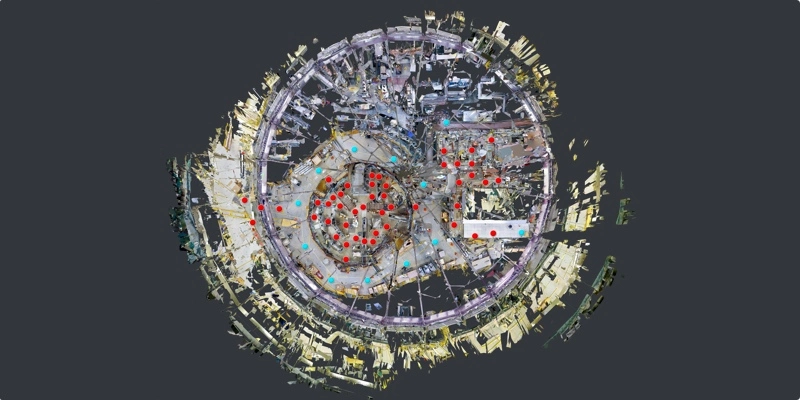

Step 2: Data Processing and Point Cloud Generation

After capturing the scan data, the software processes it to create a point cloud. This is a vast collection of 3D data points that accurately represent the physical space. It serves as the bridge between the physical building and the digital BIM model.

Step 3: Converting Point Cloud to BIM

Using Matterport’s Scan-to-BIM feature, the point cloud is then converted into a fully-functional 3D BIM model. The model replicates the actual structure’s dimensions, layout, and features. This allows for precise project coordination and visualisation.

Step 4: Collaboration and Project Coordination

The project director and manager can now collaborate more effectively. You can use the accurate BIM model for improved project coordination.

The BIM model facilitates seamless communication. It allows each stakeholder to work from the same accurate data source.

Step 5: Project Implementation

With the refined BIM model, project teams can seamlessly implement their plans. The digital twin serves as a valuable reference during the construction phases. They contribute to improved project efficiency and accuracy.

Benefits of Scanning at Different Stages of Large Complex Construction Projects

Want to streamline your processes? The strategic implementation of laser scanning technology at distinct project phases is crucial. Here’s why:

Allows for Real-Time Evolution

Frequent laser scans during project milestones provide real-time insights into evolving site conditions. This helps in the rapid identification of deviations from the original plan. It allows for more professional projects.

Prevents Conflict

Scans allow early detection of clashes between structural components. As a result, it can stop any potential disruptions. This helps streamline the construction progress.

Enables Robust Documentation

Scans act as digital chronicles of construction progress. This serves as an invaluable reference for analysis.

Asset Management and Digital Twins in BIM Modeling

BIM models also have a huge impact on asset management within the digital twin concept. A digital twin is a virtual replica of a physical asset. It provides real-time insights into its performance and condition.

Integrating BIM models with the digital twin framework is a powerful tool. It allows them to monitor the lifecycle of a structure.

This fusion allows for predictive maintenance and efficient facility management. It also enables continuous improvement based on data-driven insights.

Need a BIM Modeling Partner?

When used by a project director, BIM modeling can help teams visualise the project. It also makes identifying potential clashes easier and improves communication between team members. As a result, it reduces errors, improves accuracy, and increases construction efficiency.

Count on 360 Virtual Tour Co. for your 3D BIM modeling needs. Our BIM modeling services can help improve the outcomes of your construction project. Find out how we can help you with your project by getting in touch with us today.
